Access the Pipeline
- Log in to the Mezmo Web App.
- Click the Pipeline icon at the top of the left navigation column.
Pipeline Architecture
The Log Analysis Source Pipeline processes data in four steps, with each step designed to optimize your data for use with Mezmo Log Management.

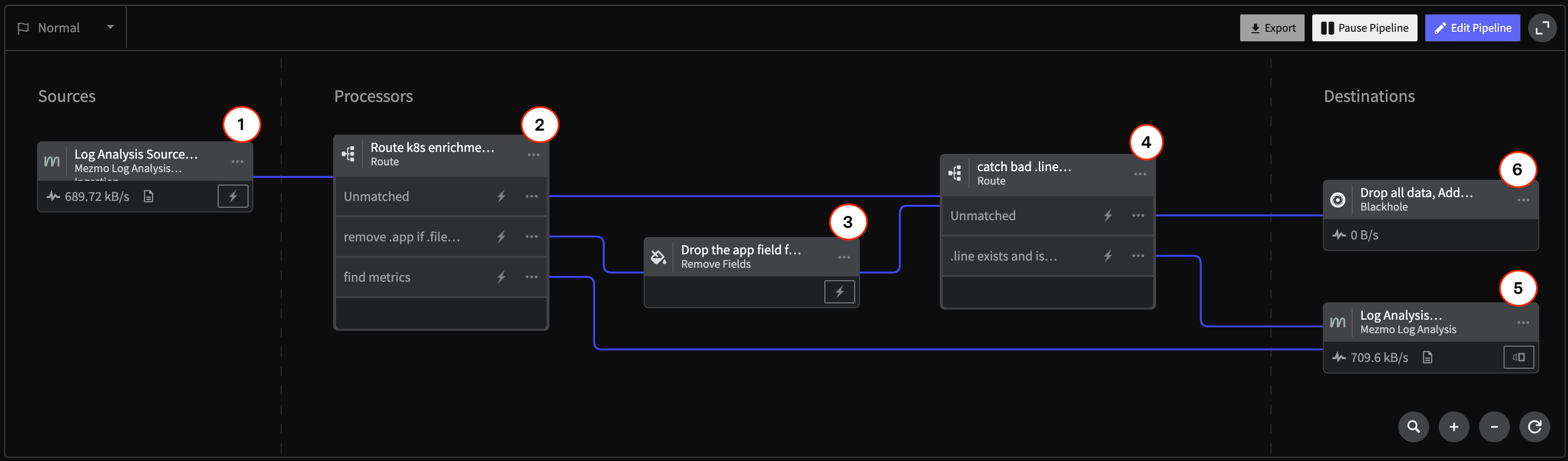

Schematic of the LASD Pipeline showing 1) the Mezmo Log Analysis Source 2) the Route Processor for Kubernetes Enrichment 3) the Drop Fields Processor 4) the Route Processor for Bad LInes 5) the Mezmo Log Analysis Destination 6)the Blackhole Destination
| Component | Description | Configuration |
|---|---|---|
| 1. Mezmo Log Analysis Data Source | ||

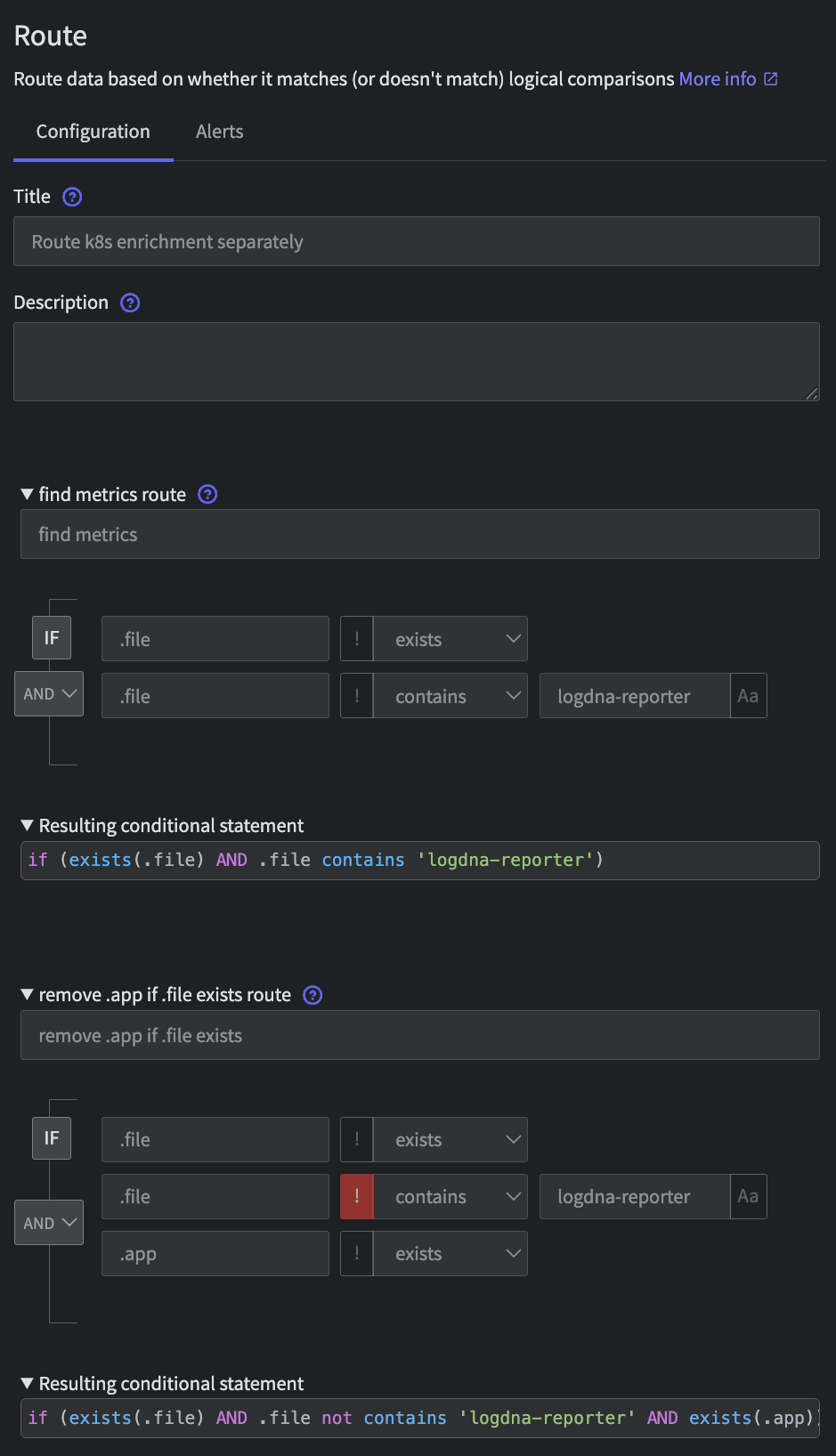

| 2. Route Processor | The Route Processor uses conditional statements to identify Kubernetes enrichment metrics, app/file metadata, and other relevant data for further processing, while unmatched data is sent directly to Log Analysis. |  |

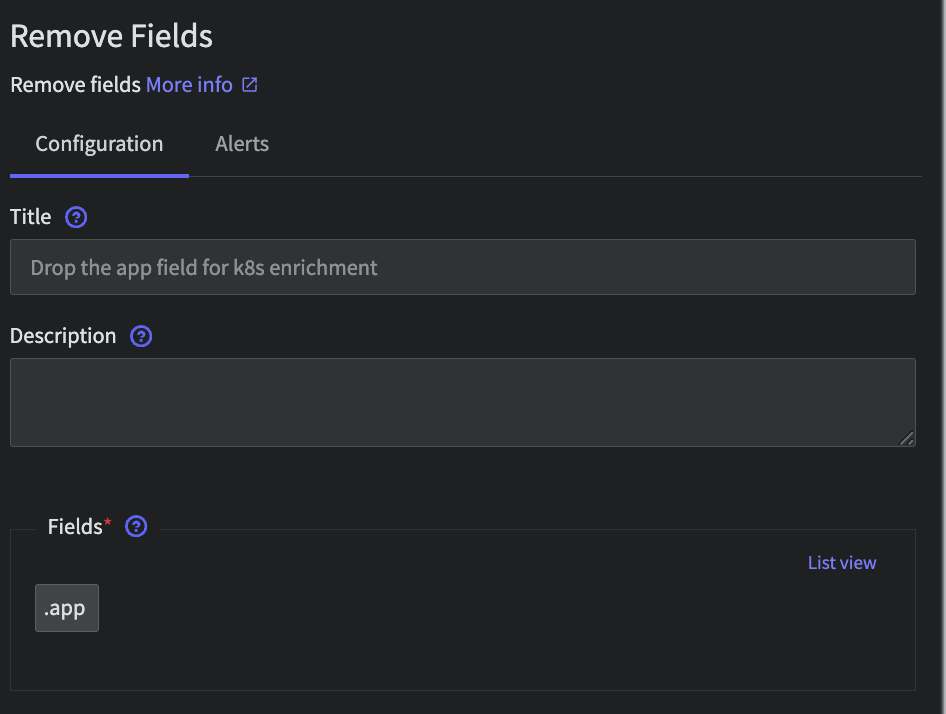

| 3. Remove Fields Processor | The Remove Fields Processor drops the .app field when a file is also present. |  |

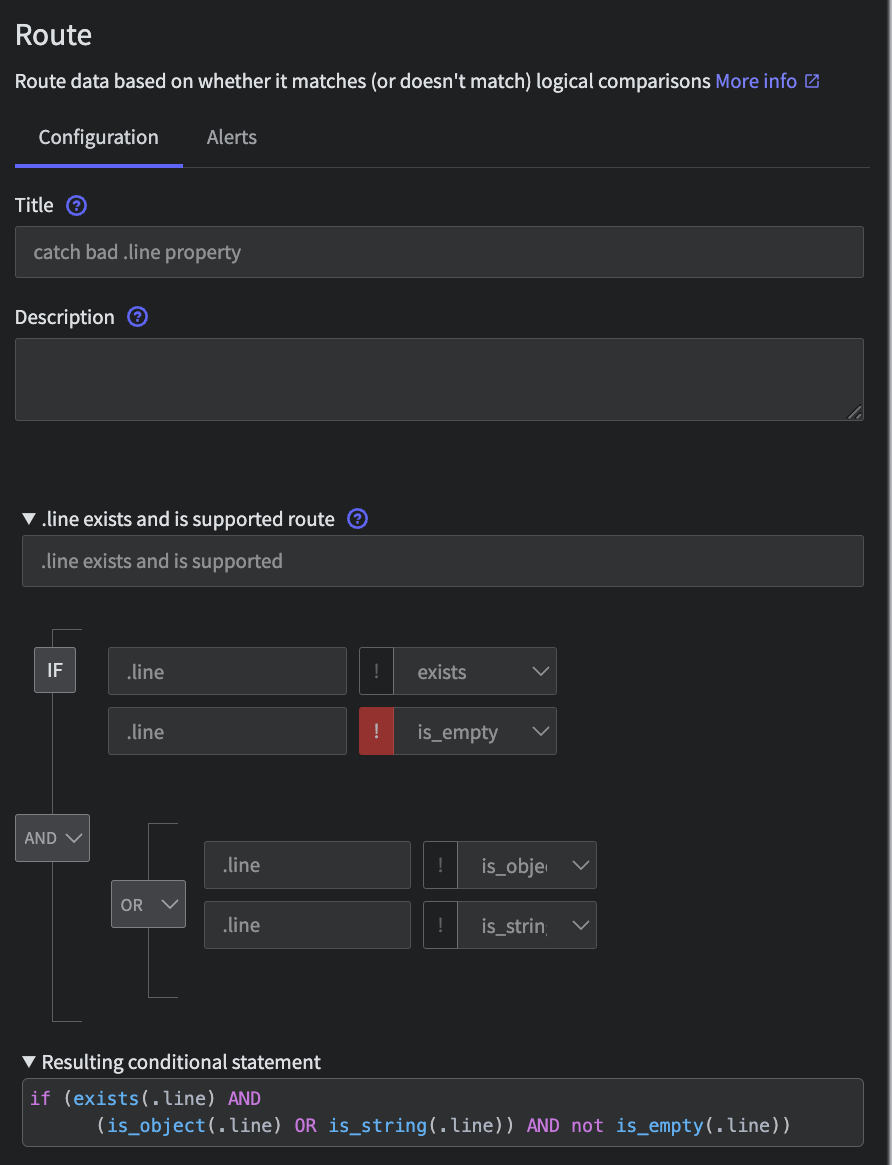

| 4. Route Processor | The Route Processor routes empty fields to a Blackhole Destination, where they are dropped. |  |

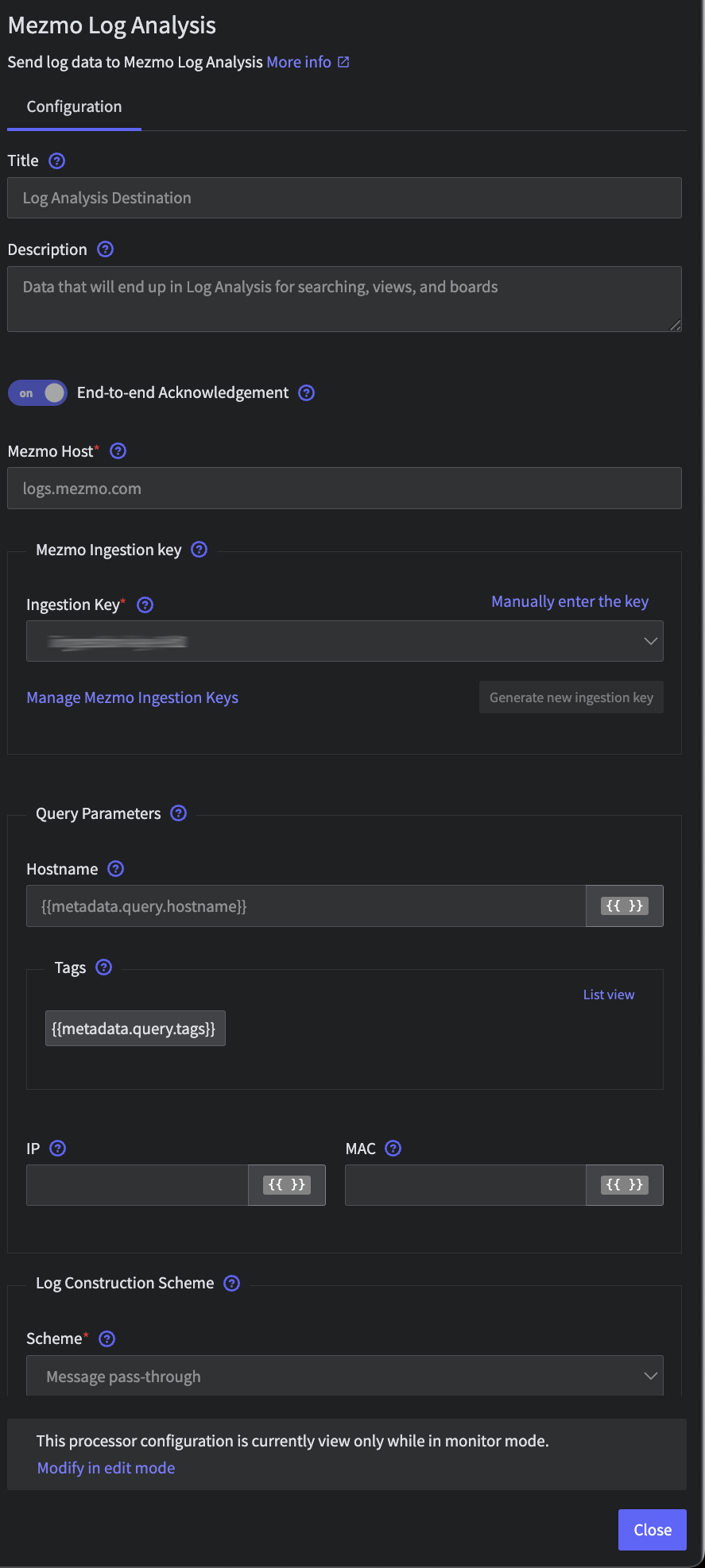

| 5. Log Analysis Destination | The processed telemetry data is sent to Mezmo Log Analysis. |  |
| 6. Blackhole Destination | The Blackhole Destination drops all data sent to it. |
