Create a Parsing Template

You'll learn how to parse ingested log lines. This will cover the parsing screen, the parsing mini map, and using some of the parsing functions available. You can parse all four values or parse one and move onto Validate Templates.

You'll use the following log lines throughout and you'll parse:

• ip_address: 111.00.11.10
• timestamp: 14/Nov/2018:10:35:00 +0000
• response: 200
• upstream_length_time: 49/0.008

111.00.11.10 - [111.00.111.10] - - [14/Nov/2018:10:35:00 +0000] "GET /logdna_test/v1/health

HTTP/1.1" 200 44 "-" "Mozilla/5.0 (compatible; MSIE 9.0; Windows NT 6.1; Trident/5.0; AppInsights)"

586 0.004 [logdna_test-service-80] 111.00.11.10:80 49 0.008 200 230abc56545logdna1238e

Parse a String

You are going to parse 111.00.11.10 from the log line.

1. Go to Parsing Templates and click Create a Template.
2. In Choose a Log Line, select Add my own log line. You'll be using the log line from the introduction.
3. Click Build a Parsing Template. You will see the line you entered as a Reference Line.
4. First, you are going to break the text down into smaller parts to so you can use the part you want. In Choose an Extractor, select Extract Value By Delimiter.
5. Enter a space and then a dash.
6. Now you should see 111.00.11.10 and *[111.00.111.10] as part of the lines parsed.
7. Select 111.00.11.10 and choose the operator,Capture in Field. Give a label ip_address.
8. The result is shown at the bottom of the parsing page.

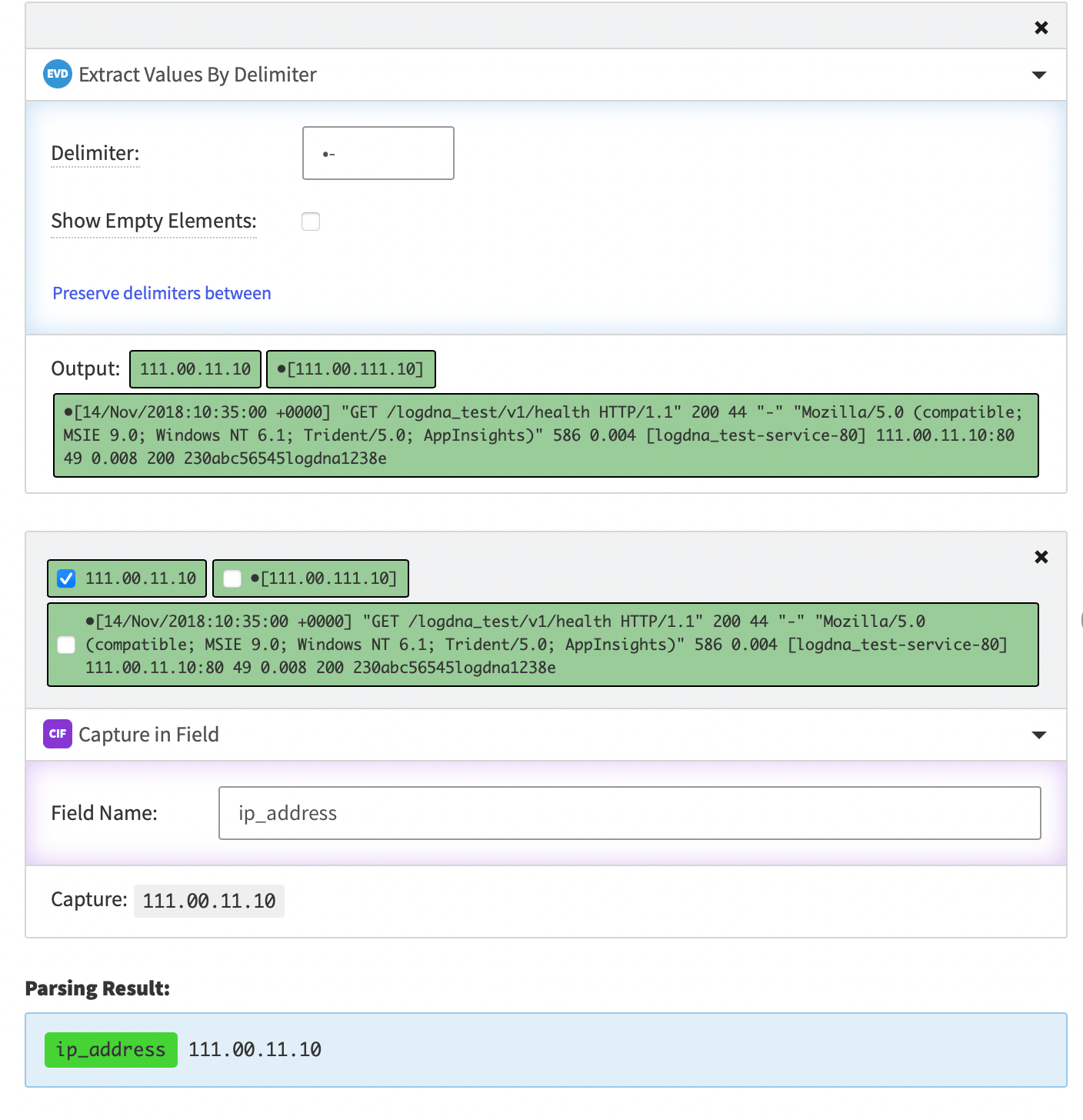

Results of parsing the string 111.00.11.10 as the IP Address

Parse a Timestamp

You'll parse 14/Nov/2018:10:35:00 +0000 from the log line.

1. Select the circle with the plus sign to create a Sibling Operator. When you create a sibling operator, the mini map updates to show the relationship between operators and the template screen updates to have a new Choose an Operator. Learn more in Edit Parsing Operations with the Mini-Map.
2. Check the longer output that includes the timestamp.
3. Choose an operator > Extract by Delimiter.
4. Enter a space into the delimiter.
5. Notice the output has split everything by space, including part of timestamp. To fix the timestamp, you need to preserve some of the spaces.
6. Click Preserve delimiters between.
7. Start use a left square bracket [ and end use a right square bracket, ] .
8. Click Preserve delimiters between again. Use double quotes " for both start and end. You'll notice that the timestamp is now cleaned up, along with some of other output.
9. Now we need to remove the brackets from the timestamp, so it's easier to run diagnosis against. Select the timestamp. [14/Nov/2018:10:35:00 +0000] , choose operator, Trim Value.
10. Trim Value is 0 based counting. Start, enter 1 , for end enter -1.
11. Your output should be the timestamp.
12. Choose operator > Capture in Field and label it timestamp .
13. So far, you've captured two fields from the log line.

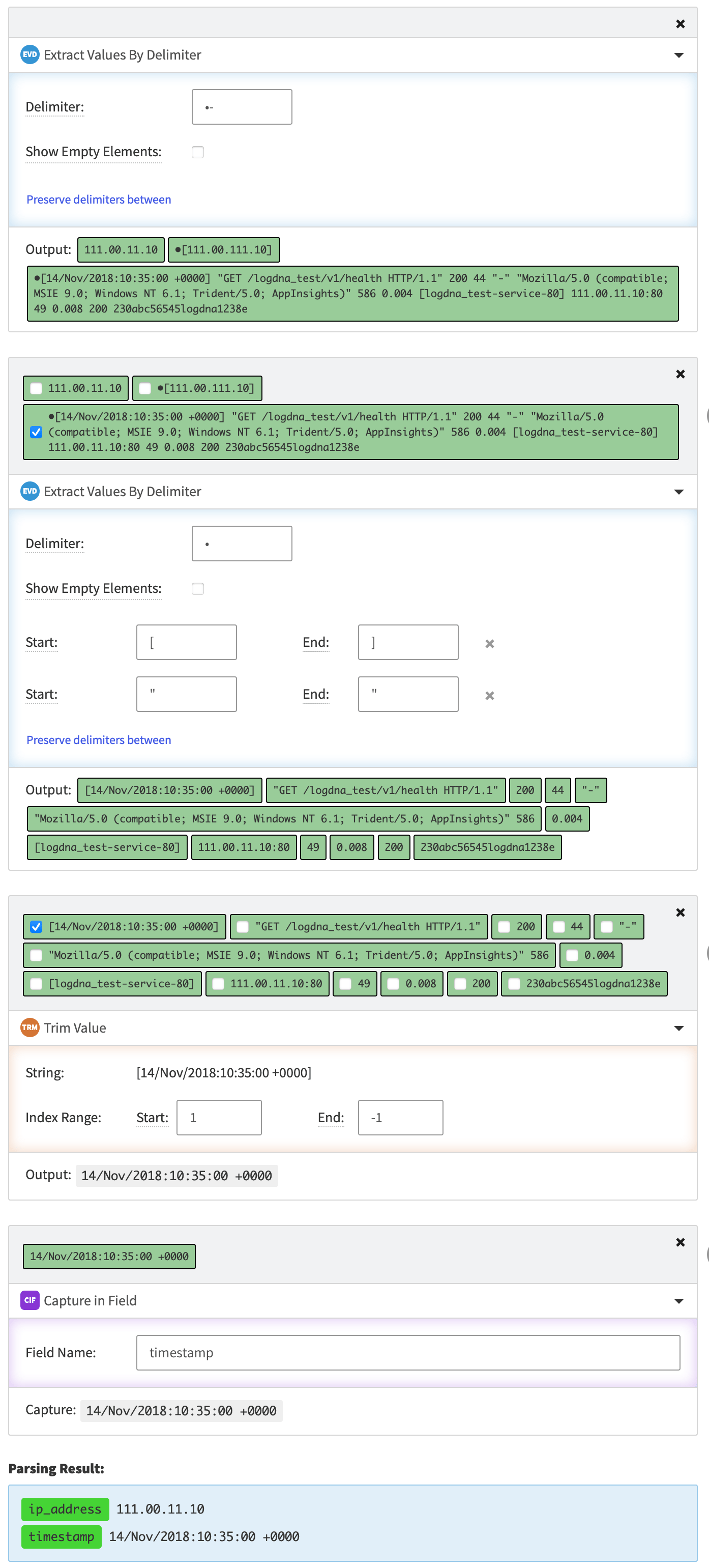

Results of parsing the timestamp

Parse a Number

You are going to parse 200 from the log line.

1. Using the mini map, select Trim Value. Trim Value is orange, you can also hover over the icons in the mini map. Using the mini map lets you jump between parsed areas. By starting from Trim Value, you can start from a place where the 200 is already separated from the other values, making it easier to use.
2. Click Add a Sibling Operator.
3. Select 200.
4. Choose an operator > Convert to Number.
5. Choose an operator > Capture in Field. Field name is response.

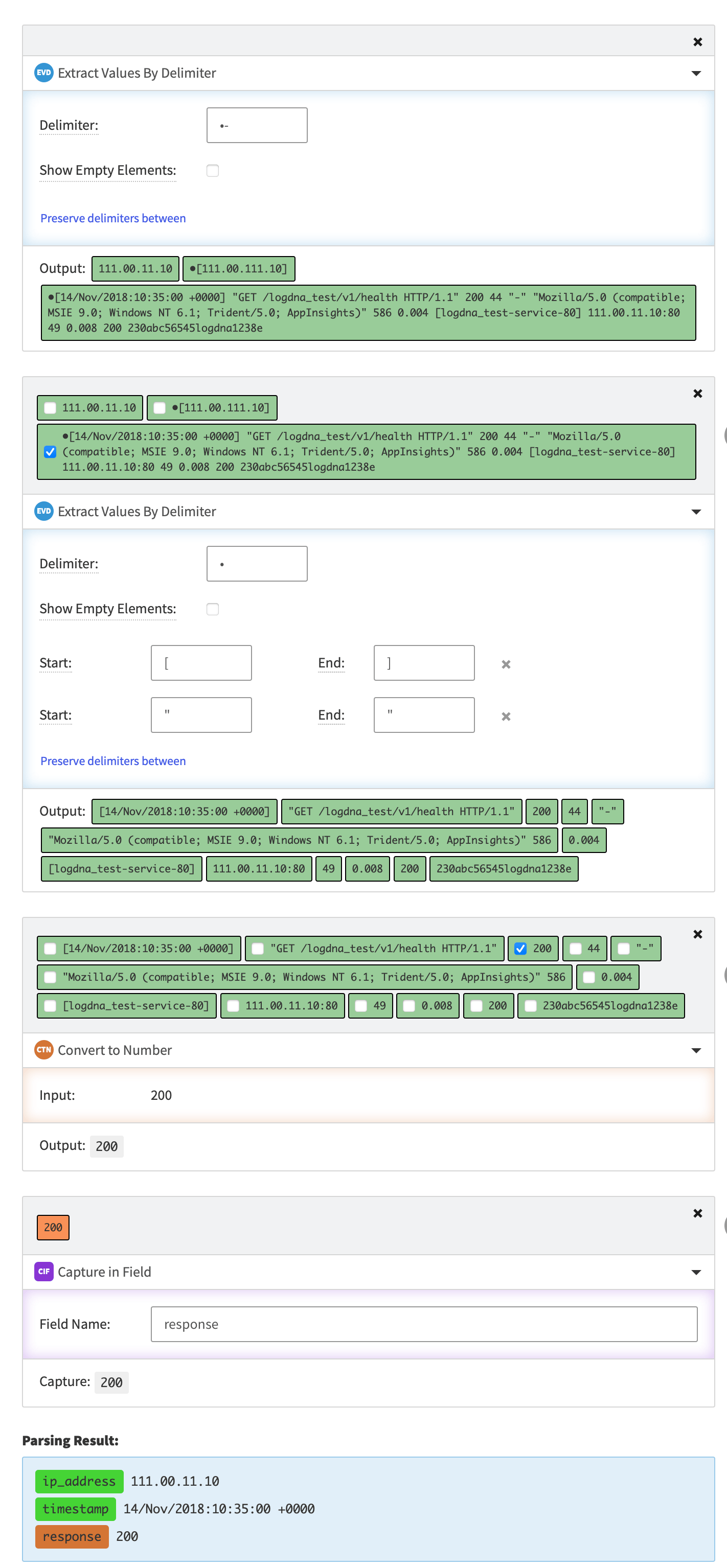

Results of parsing the 200 response

Concatenate Log Lines

You are going to parse 49 and 0.008 from the log line.

1. Create a sibling operator to either Trim Value or Convert to Number in the mini map.
2. Select 49 and 0.08 from the output.
3. Choose an operator > Concatenate Values by Delimiter.
4. Enter a forward slash \ as the value.
5. Choose an operator > Capture in Field.
6. The field name is upstream_length_time.

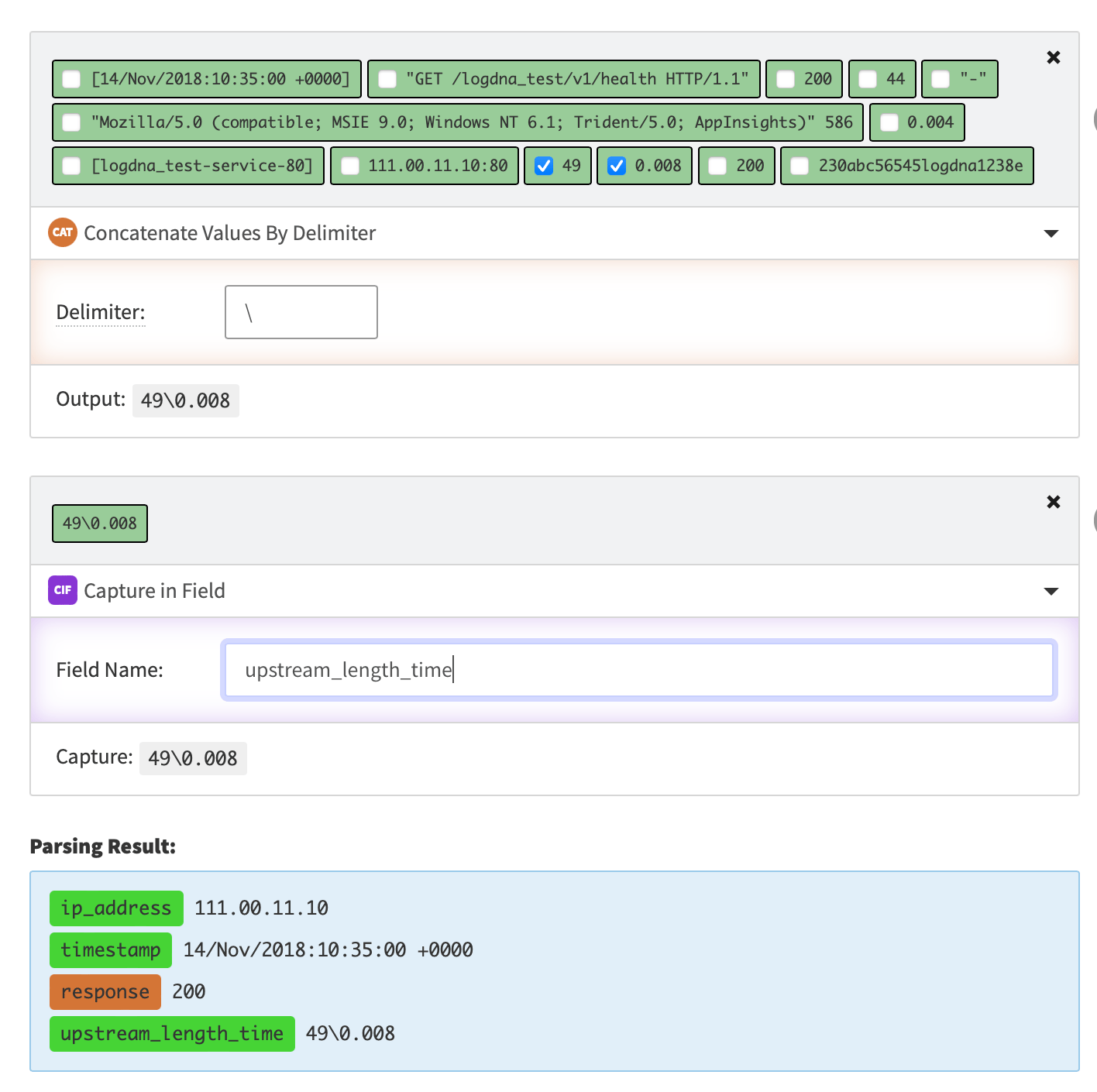

Results of concatenating 49 and 0.008

Validate Template

Before you can make a template active, you must check that the log lines you want are working.

1. Add a log line to test against in Add a Line. You can use the example line. When testing you want to be sure to test multiple lines by adding lines.

2. You can also test by adding a query to Apply this parsing template to sample lines matching this query:. This step is required and is the scope of the parsing template.

3. Mark the log lines as valid or invalid.

   1. If a line is marked as invalid you'll be taken back to the Parsing Template step.

4. Activate changes to apply your changes.

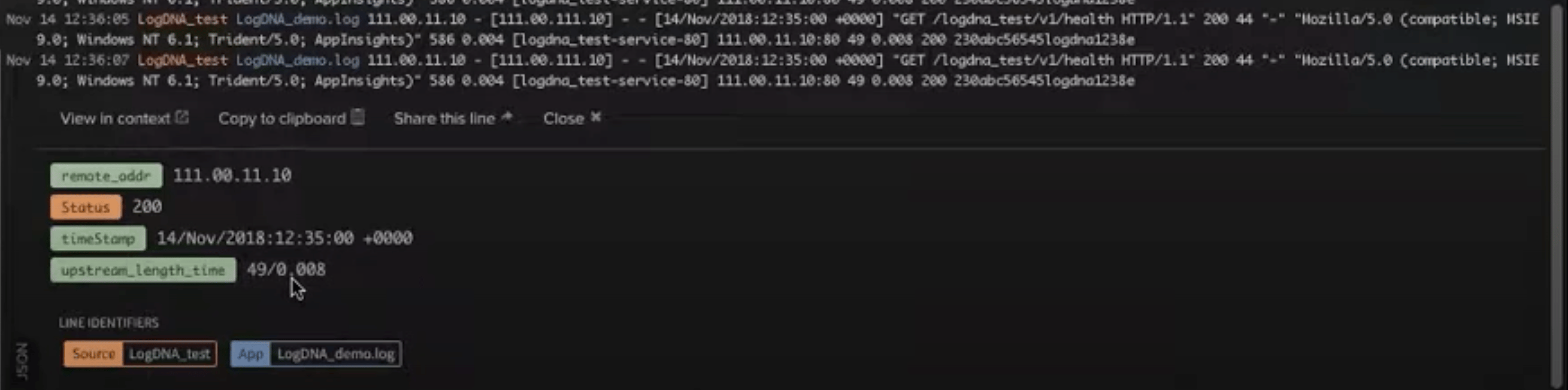

Results

The log lines the template applies to will show in the Log Viewer.
